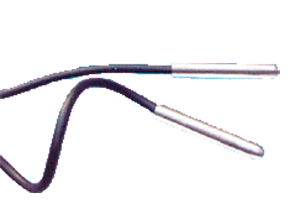

JDWDJ-1 thermometer

Brief:
JDWDJ - 1 Type digital thermometer armoured structure is suitable for the buried for a long time in the hydraulic structures or Other concrete buildings (cooperate with our factory instrumentation), measure the Temperature inside the structure. Can be directly read embedding point Temperature measurement. High waterproof performance, suitable for automatic monitoring, convenient and quick, is not affected by a long cable. Without armored structure can directly access all instrument for Temperature measurement.

Detailed parameters
Size parameters Length Lmm 50
Diameter Dmm 10
Performance parameters Working Temperature (℃) -30~+70
Temperature measurement accuracy (℃) ±0.1
Insulation resistance MΩ ≥50
